TEFC Thre Phase (415 ± 6% Volts) Induction Motors
(Class B Insulation)
| H.P. |
K.W. |
FRAME |
R.P.M.
(SYN) |
H.P. |
K.W. |
FRAME |
R.P.M.
(SYN) |
H.P. |
K.W. |
FRAME |
R.P.M.
(SYN) |
| 0.25 |
0.18 |
63 |
1500/3000 |
- |
- |
- |
- |
- |
- |
- |
- |
| 0.5 |
0.37 |
71 |
1500/3000 |
0.25 |
0.18 |
71 |
1000 |
- |
- |
- |
- |
| 0.75 |
0.55 |
80 |
1500/3000 |
0.5 |
0.37 |
80 |
1000 |
0.25 |
0.18 |
80 |
750 |
| 1.0 |
0.75 |
80 |
1500/3000 |
0.75 |
0.55 |
80 |
1000 |
0.33 |
0.25 |
80 |
750 |
| 1.5 |
1.1 |
90L |
1500/3000 |
1.0 |
0.75 |
90L |
1000 |
0.5 |
0.37 |
90L |
750 |
| 2.0 |
1.5 |
90L |
1500/3000 |
1.5 |
1.1 |
90L |
1000 |
0.75 |
0.55 |
90L |
750 |
| 3.0 |
2.2 |
100L |
1500/3000 |
3.0 |
2.2 |
112M |
1000 |
2.0 |
1.5 |
112L |
750 |
| 5.0 |
3.7 |
112M |
1500/3000 |
3.0 |
2.2 |
112M |
1000 |
2.0 |
1.5 |
112M |
750 |
| 7.5 |
5.5 |
132M |
1500 |
5.0 |
3.7 |
132M |
1000 |
3.0 |
2.2 |
132M |
750 |
| 10.0 |
7.5 |
132M |
1500 |
7.5 |
5.5 |
132M |
1000 |
4.0 |
3.0 |
132M |
750 |

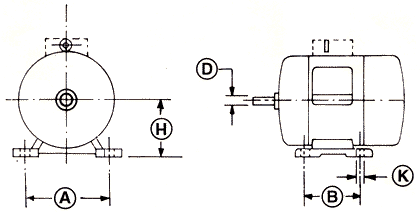

Dimensions
All Dimensions Are Nominal And M.M.
| Frame
Size |
H |
A |
B |
K |
D |
| 63 |
63 |
100 |
80 |
7 |
11 |
| 71 |
71 |
112 |
90 |
7 |
14 |
| 80 |
80 |
125 |
100 |
10 |
19 |
| 90 |
90 |
140 |
125 |
10 |
24 |
| 100 |
100 |
160 |
140 |
12 |
28 |
| 112 |
112 |
190 |
140 |
12 |
28 |
| 132 |
132 |
216 |
178 |
12 |
38 |
